Technical Specifications
- Brand/Model: Lucy Zodion Photocell Kit SS4D
- Product Function: Dusk-to-Dawn Sensor/Switch
- Sensor type: Photodiode
- Switch type: Electro-magnetic Relay Load Switching
- Supply Voltage: 198 to 264 VAC 50/60Hz
- Switch ON setting: 70 Lux
- Switch OFF setting: 105 Lux
- Maximum Switching Capacity 5A (resistive), 600W (inductive), 60μF
- Switching Delay: 15-30 secs
- Power Consumption: <0.5 W
- Ingress Protection (IP) Rating: IP65
- Sensor Drift: Negligible
- Operating Temperature: -20ºC to 70ºC
- Approvals: EN 50081-1 EMMISSIONS - EN 50082-1 IMMUNITY
- IP Rating (installed): IP65
- Enclosure Material: Polycarbonate
- Fixing / Socket: NEMA

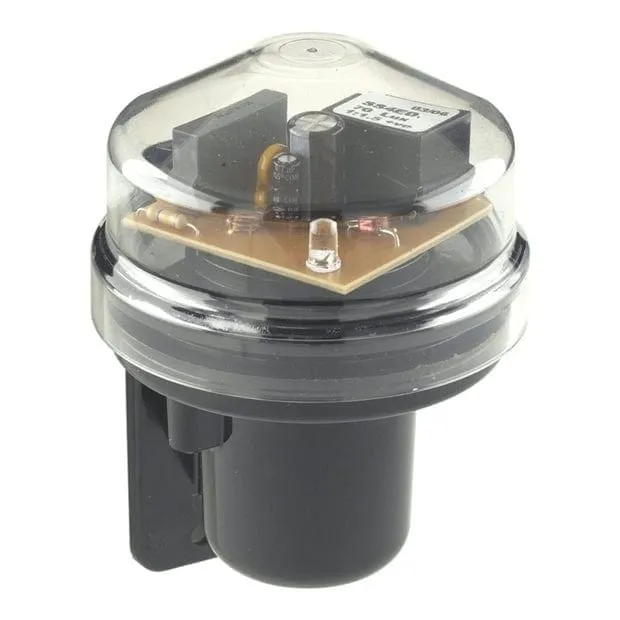

- The SS4D photo electric control unit represents a breakthrough in photocell technology that incorporates an electro-magnetic relay and a photodiode sensor
- Reduces burning hours, minimizes energy consumption and ensures high accuracy of switching over lifetime

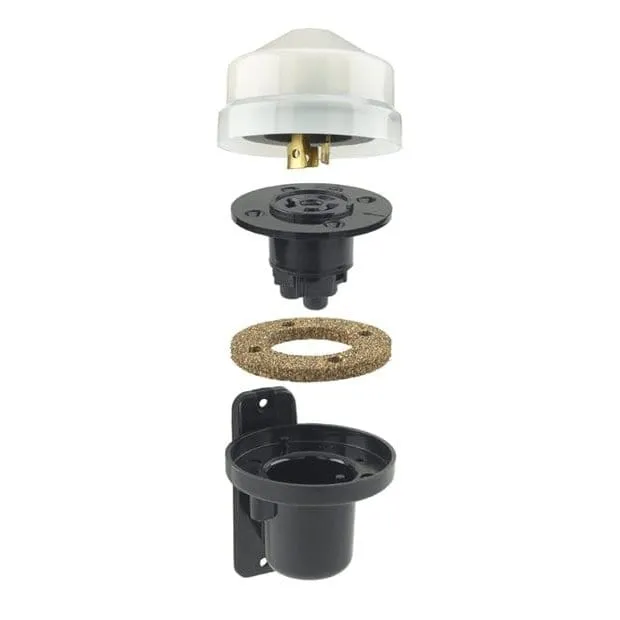

- SS4D Photocell kit includes the electronic photocell unit, NEMA socket, wall-mounting bracket, neoprene impregnated cork gasket, screws and wall-plugs
- The unit incorporates a time delay to prevent operation by car headlights, lightning, etc
- The unit is omni-directional and therefore reference to North light is not necessary
Experience effortless outdoor lighting control with the Lucy Zodion Photocell Dusk to Dawn Automatic Light Control Sensor Switch. This advanced sensor switch is designed to automatically activate outdoor lights at dusk and deactivate them at dawn, providing convenient and energy-efficient illumination. Whether it's for security, safety, or ambiance, this sensor switch ensures your outdoor lighting is always perfectly timed. Trust Supply Master in Accra, Ghana, for top-tier lighting control solutions that enhance your outdoor space.
